Posts in category: Surface pumps

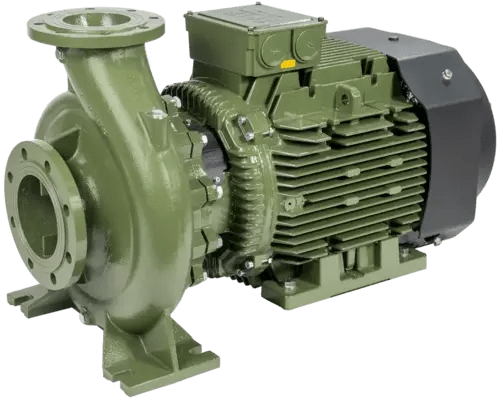

An incredibly extensive and efficient range which provides a flexible response to market requirements thanks to the numerous versions available with incredible delivery times. Compact design to minimise costs and footprint, heavy-duty design allows for long machine lifecycle.
Their characteristics allow for use in a wide range of environments, from recirculation and air conditioning systems to water supply, for pressurisation groups etc.

Available in different metals and alloys, with short delivery times even for the super duplex version.
New models for power ratings of up to 90 kW.
Back pull-out design

Technical Features
• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 825 m3/h
• 129 m
• 90 kW
• 60 Hz VERSION
• 800 m3/h
• 113 m
• 90 kW

AVAILABILITY AND VARIANTS

• Version with ACS certification for potable water available
• Version for fluids up to 120°C on request
• Possibility of special paints and coatings
• ANSI standard hole patterns on request

OPTIONAL ACCESSORIES

• Pre-filters
• Motor-mounted inverter up to
• 18.5 kW
• Electrical switchboards

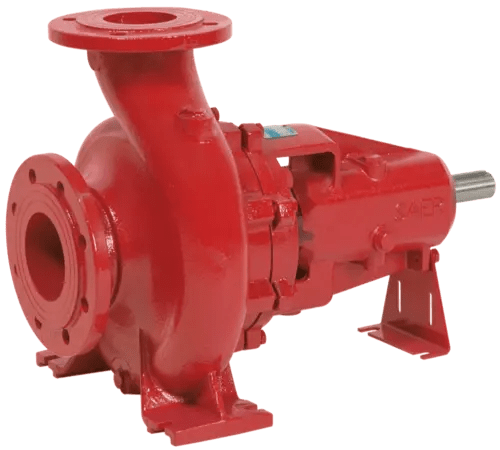

Range designed specifically for firefighting applications, with performance meeting EN 12845.
Available in different configurations depending on the needs and requirements of the end user.
Can be supplied with bare shaft, as a complete unit or complete unit with joint and base, without motor.

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50HZ VERSION
• 675 m3/h
• 129 m
• 90 kW
• 60HZ VERSION
• 800 m3/h
• 113 m
• 110 kW
• Can be coupled to Diesel engines

Flexible and functional electric pumps, suitable for overhead irrigation systems, for taking water from lakes, rivers, tanks, and many and numerous other industrial uses.

Threaded fittings. The BP series has been designed to achieve medium-low heads and high flow rates in relation to the head

TECHNICAL FEATURES
• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 210 m3/h
• 63 m
• 22 kW
• 60 Hz VERSION
• 260 m3/h
• 96 m
• 37 kW

AVAILABILITY AND VARIANTS

• NPT threading available on request

OPTIONAL ACCESSORIES

• Motor-mounted inverter up to 18.5 kW
• Electrical switchboards

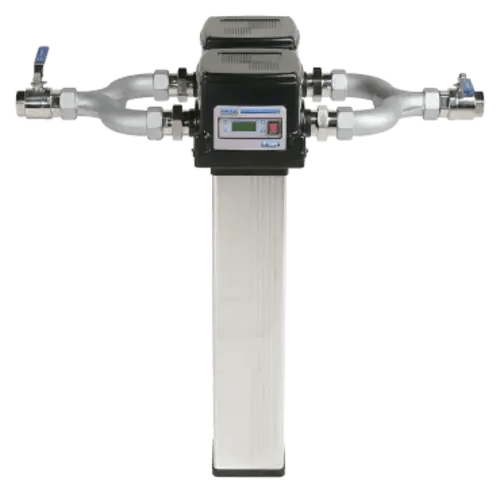

The T-ONE pressurisation system is composed of a submersible electric pump inserted in a stainless-steel tank which, controlled by an electronic device, keeps the output pressure constant independently of the requested flow rate.
Compact, electronic, modular, quiet and efficient

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 15 m3/h
• 110 m
• 1.5 kW
• Up to 8 parallel multipump modules which can be added at any t

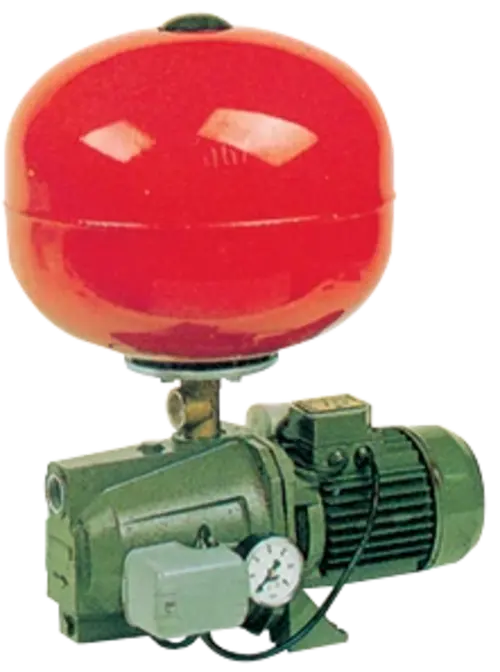

These lifting units can be installed in all civil, industrial and agricultural systems where the pressure is not sufficient, thus ensuring a continuous supply of water at the required pressure.
These units can be combined with autoclave tanks with interchangeable membranes of different capacities

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 4.8 m3/h
• 32 m
• 1.5 kW
• 60 Hz VERSION
• 4.8 m3/h
• 32 m
• 1.5 kW
• For buildings with heights up to 40 m.

PTRONIC is the electric pump + electric pressure switch group which protects the pump from running dry, current overloads or fast-cycling.
Programmable to meet requirements, it is easy and intuitive to use

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 8 m3/h
• 73 m
• 1.5 kW
• 60 Hz VERSION
• 8 m3/h
• 73 m
• 1.5 kW

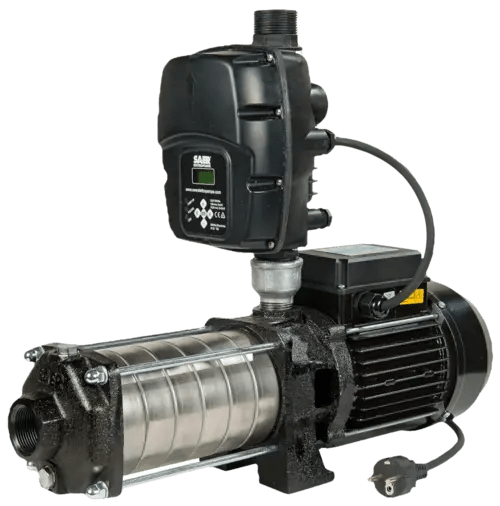

PCS allows you to manage pump starting/stopping, regulating the rotation speed in order to keep the system pressure constant as the required flow rate changes.
This also provides significant efficiency benefits, allowing the system to draw power proportionally to the actual water demand

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 8 m3/h
• 73 m
• 1.5 kW
• 60 Hz VERSION
• 8 m3/h
• 73 m
• 1.5 kW

Monobloc electric pumps. Used for water supply from tanks or basins for domestic, civil, agricultural use and where water pressurisation is required in general. The impellers in thermoplastic resin guarantee durability even when sand is present.
Modular system: a single pump allows three different versions to be obtained, simply by changing the lower part (intake grille, suction base, suction fitting)

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 18 m3/h
• 113 m
• 4 kW
• 60 Hz VERSION
• 21 m3/h
• 127 m
• 5 kW

BRIO is an electronic device which replaces the traditional pressure switch-expansion vessel system, providing fluctuation-free output pressure and ensuring the pump is protected against running dry.

Compact and reliable, and both easy to install and use, it is a single device which replaces numerous accessories

• MAXIMUM FLOW RATE
• MAXIMUM HEAD
• MAXIMUM POWER
• 50 Hz VERSION
• 8 m3/h
• 73 m
• 1.5 kW
• 60 Hz VERSION
• 8 m3/h
• 73 m
• 1.5 kW
